Our Fleetlist
NameE-NINE
Port of RegistryLimassol
FlagCyprus
Vessel TypeShoalbuster 3612
Year of Build2010
ClassBureau Veritas
Bollard Pull70 tbp
OwnerOperator : Emar Offshore Services B.V.

Propulsion System

Main Engines2x Caterpillar, 3516 B TA
Total Power 3840 kW (5150 hp) at 1600 rpm
Gearbox Reintjes WAF 873 / 7.455 : 1
Propulsion 2x fixed pitch propellers in nozzles
Diameter2700 mm
Bowthruster294 kW (400 hp), hydraulically driven

Main Dimensions

Length Overall35.25 m
Beam overall11,60 m
Depth at sides5,25 m
Draught aft3,64 m
Gross tonnage 614 T

Deck Equipment

Anchor2x 495 kg (H.H.P.)
Deck CraneHeila 170-4S-L, remote controlled, capacity: 18,2 tons at 8,03 m
Anchor WinchRidderinkhof, CAW-H-152, capacity 5 tons at 10 m/min.
AH towing winchRidderinkhof AHW-H-1000, capacity: P= 50 tons at 10 m/min. P=100 tons at 5 m/min. B=100 tons
Towing wireMain 740mtr 52mm / Second 349 mtr 48mm
Towing pinsKarm Fork, 160 tons SWL
Fifi monitor2x monitor Albach EL 377
Fife pump1200 m3 /hr
Stern roller5000 mm x 980 mm, 100 tons SWL
Spark arrestorsfitted (external)
Towing wire storage reelElectrical driven, 500 m
Tugger winch Brevini, 8 tons at 4.5 m/min

Nautical and Communication Equipment

Searchlights2x Seematz1000 W
Navigation equipmentMagnetic compass, gyro compass, 2x radar, GPS, autopilot,
Communication 3x VHF, 2x handheld VHF, Navtex,Inmarsat-C, SSB, Iridium, intercom,PA-system, LRIT, AIS, SSAS.
Additional equipment Starlink Satcom, High Speed Internet and WiFi
GMDSSAll systems and equipment according to GMDSS Area 3.

Auxiliary Equipment

Auxiliary engines2x Caterpillar C-9 TA
Generator Leroy Somer, LSAM 46.2 M5
Output2x 150 kVA 50 Hz, 230/400 V
Hydraulic setCaterpillar C18 TA, 500 kW at 2100 rpm
Fuel SeperatorAlfa Laval type MAB 104, 1950 ltr/hr
Transfer pumpsFuel 50 m3 /hr at 4.8 bar
Fresh water 50 m3 /hr at 4.8 bar

Capacities

Fuel oil374,4 m³
Fresh water42,0 m³
Lubrication Oil4,4 m³
Dirty Oil4,4 m³
Sewage23,6 m³
Bilge2,3 m³
Hydraulic oil 3,7 m³

Performance

Speed11,6 kn
Bollard Pull70 tbp

Accommodation

Accomodation Heated and air-conditioned living spaces for 13 persons, consisting of three single crew cabins and five double crew cabins, a galley, a mess room and sanitary facilities.

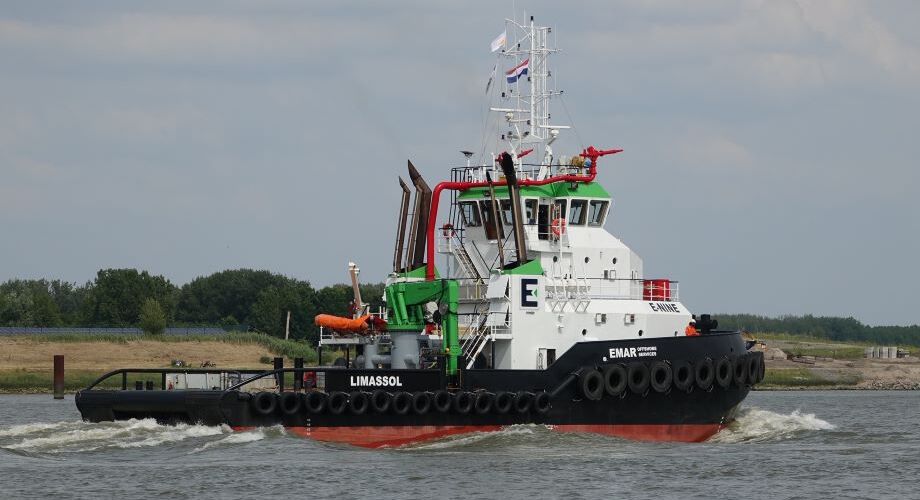

E-NINE

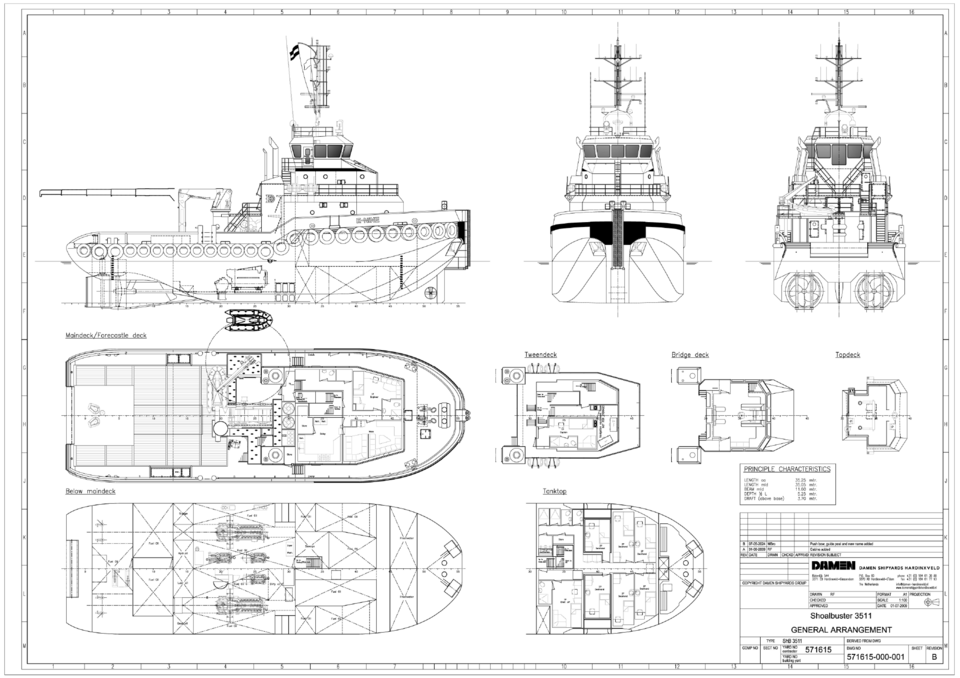

General Arrangement
